Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
| उत्पत्ति के प्लेस | शंघाई, चीन |
|---|---|
| ब्रांड नाम | JND |
| प्रमाणन | FSSC 22000;ISO 9001; |
| मॉडल संख्या | VCB29T99 |
| न्यूनतम आदेश मात्रा | 50000 यूनिट |
| मूल्य | $0.07/unit without printing |
| पैकेजिंग विवरण | पीई बैग +पेपर कार्टन का आकार: 595*400*350 मिमी 550pcs ट्यूब के लिए; 390*300*475 मिमी 1500pcs कैप के |
| प्रसव के समय | 7-15 दिन |
| आपूर्ति की क्षमता | 27000 यूनिट प्रति दिन |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
Whatsapp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| आवेदन | विटामिन, खनिज, सप्लीमेंट्स के अपवर्जन टैबलेट | बोडे सामग्री | पीपी |
|---|---|---|---|
| टोपी सामग्री | पीई | प्लास्टिक प्रकार | पीपी |
| मुद्रण रंग | 6 रंग अधिकतम | ओईएम | स्वीकार करना |
| छपाई | हॉट ट्रांसफर प्रिंटिंग या इन-मोल्ड-लेबलिंग | सामग्री | खाद्य ग्रेड पीपी |
| मूक | 50000 यूनिट | ढलाई | अंतः क्षेपण ढलाई |
| प्रोडक्ट का नाम | ढक्कन के साथ खाद्य ग्रेड पीपी ppervesced टैबलेट ट्यूब | टोपी | सर्पिल टोपी |
| रंग | स्वनिर्धारित | आकार | सिलेंडर |
उत्पाद विवरण
※Product Specification
Such tube contains a set of individually wrapped effervescent tablets, making it easy to carry and use on-the-go.
The effervescent tablet packaging from JND can be printed by hot transfer processing to compete with the traditional label more uniquely, more attractively so as to enhance the brand value.

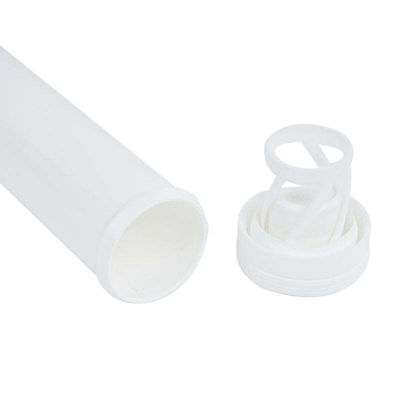

The cap of effervescent tube is cleverly designed, which is composed of desiccant, spiral spring and anti-theft ring. It plays different roles in protecting the safety and effectiveness of tablets.
1. Product Size
| JND Code | Tube Height(mm) | Neck Outside(mm) | Neck Inside(mm) | Cap Diameter(mm) | Desiccant Weight(g) |
| VCB29T99 | 99 | 29 | 27 | 34 | 2.1 |
2. Technical Specification
| Type | No. | Item | Specifications | Inspection method | AQL Type | |
|
Molding
|
1
|
Appearance |
|
Visual | Light | |
| 2 | Peculiar smell | No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample | Smell | Main | ||
| 3 | ￠29*99 | Diameter | 29.0±1.0mm | caliper | Main | |
| Height | 99.0±1.0mm | Height gauge | Main | |||
| Wall Thickness | 1.0±0.4mm | Caliper | Main | |||
| Function | 1 | Sealing Property | Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. | Visual | Main | |
| 2 | Drop Property | Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. | Visual | Main | ||
| 3 | Thermo stability | Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured | Visual | Main | ||
| 1 | Drawing | Color, Picture and Words same as standard sample | According to standard sample | Key | ||
| 2 | Appearance | The appearance of the printed product is clean no soiling and deformity refer to standard sample | Visual | Light | ||
| 3 | Peel strength | Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. | Tape test | Main | ||
3. Storage:
- Keep in a cool, dry and ventilated place. Not in sunlight, rain, near the heat source, exposed to high temperature, high humidity environment (normal temperature storage, humidity > 65%)
- Need to pad higher, away from the ground and wall 10cm above. no pressure
